Repo-City

Live demo: https://repo-city-five.vercel.app

Type the name of any public GitHub repository and it becomes a 3D city you can fly around. Files are buildings and top-level folders are districts. Every open issue is something wrong in the street: a fire, a crash, a pothole, a roadblock. Every open pull request is building work: scaffolding, a trench, a works van. A small library becomes a village and a giant becomes a metropolis. Click anything and the city shows you the real GitHub record behind it.

All of it happens on one screen. There is one route, one 3D viewport and no page changes. Surveying a second repository rebuilds the world in place.

Try it

Open https://repo-city-five.vercel.app and type one of these into the box:

Two address options work on any visit:

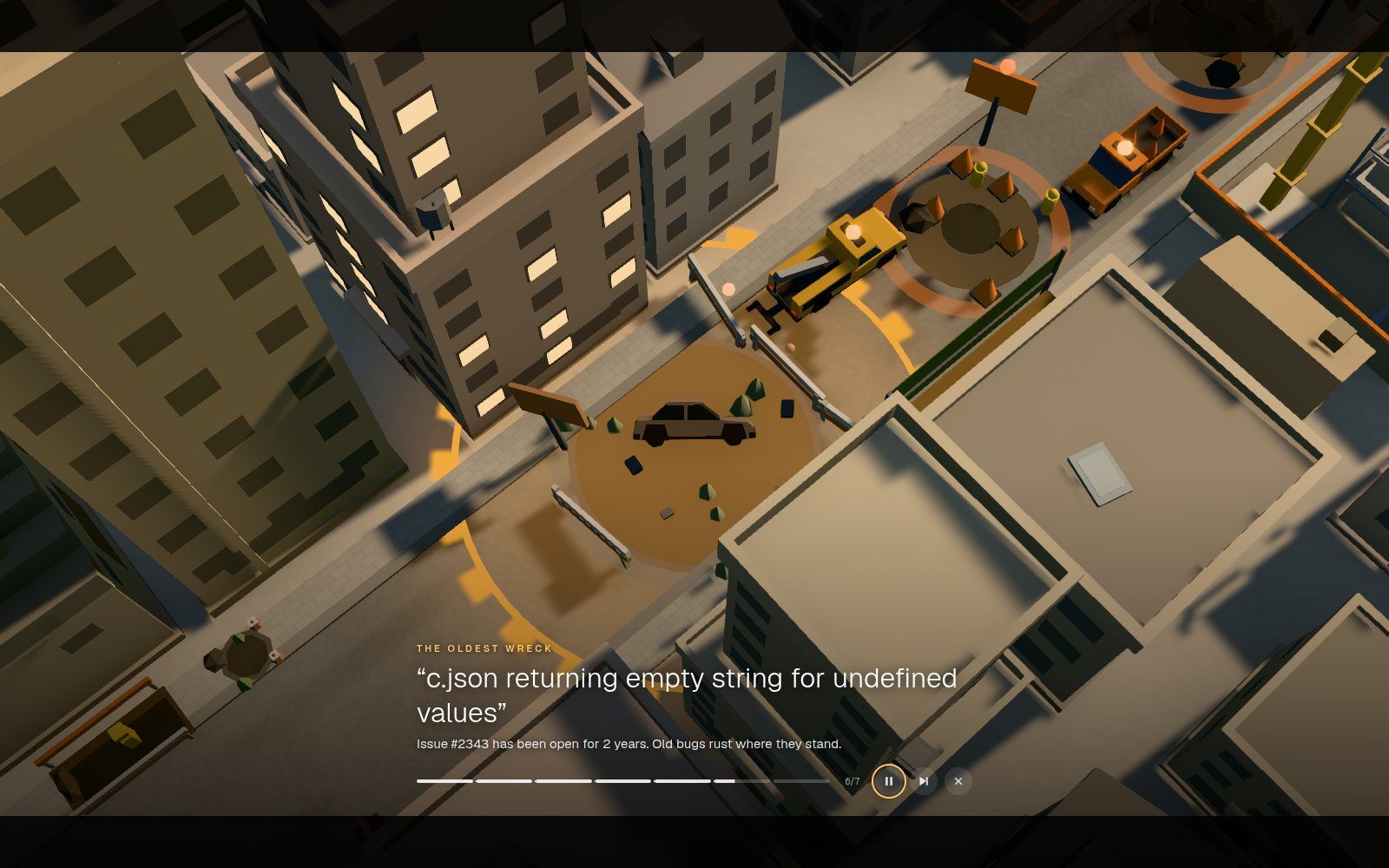

• ?tour=1 plays a one-minute guided fly-through as soon as the city is built: https://repo-city-five.vercel.app/?tour=1. The Tour button under the city's name does the same thing at any time.
• ?time=night (or morning, afternoon, evening) sets the time of day: https://repo-city-five.vercel.app/?time=night. Both options combine: ?tour=1&time=night.

Village	Town	City

Metropolis at night	A crowd object up close	The tour

What you see and what it means

The settlement

Size comes from the codebase: files plus twice the folders, counted before any cap. Recent activity can lift a settlement one step if it is already near the top of its band. Activity never lowers a tier, and an archived repository is never promoted.

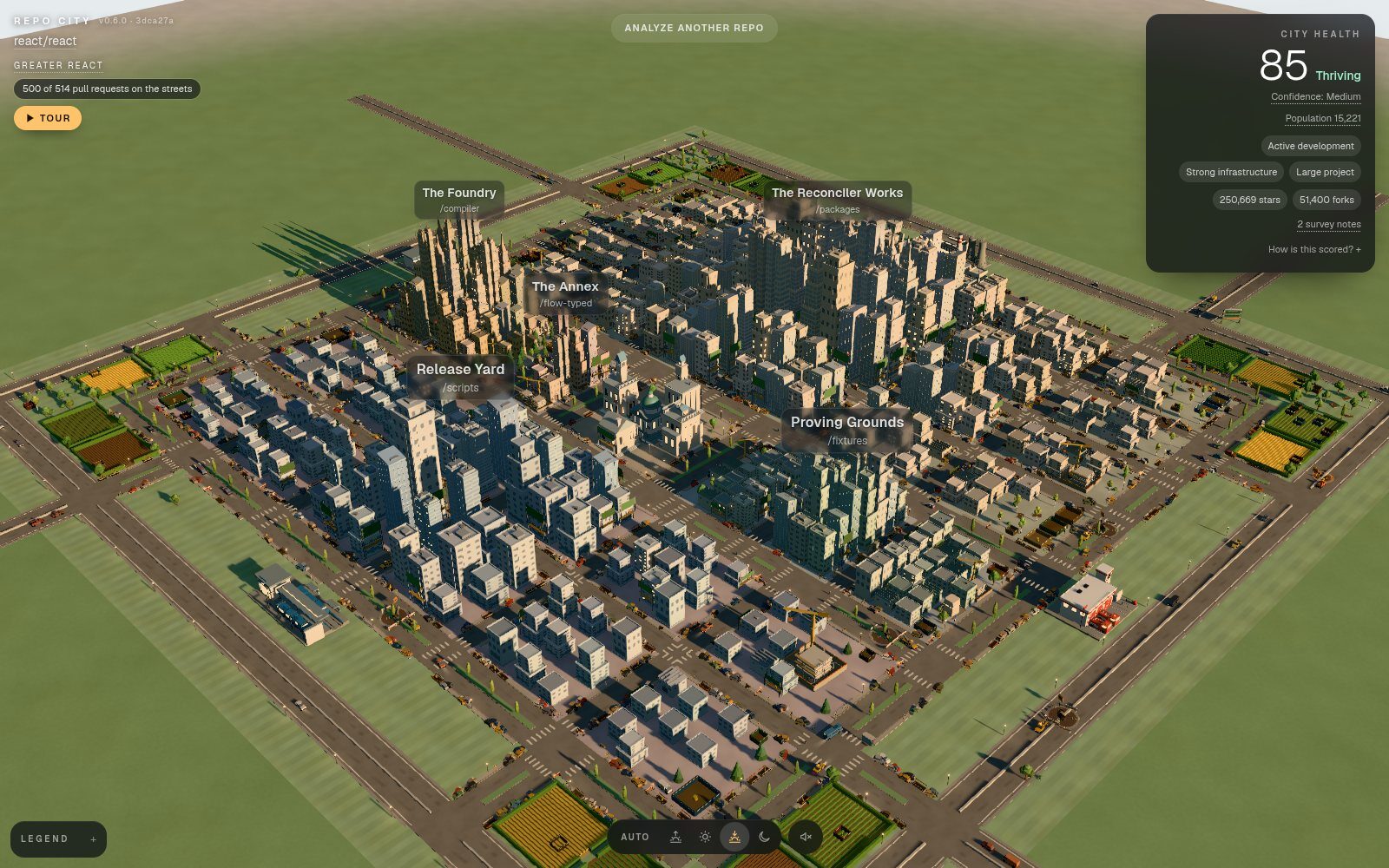

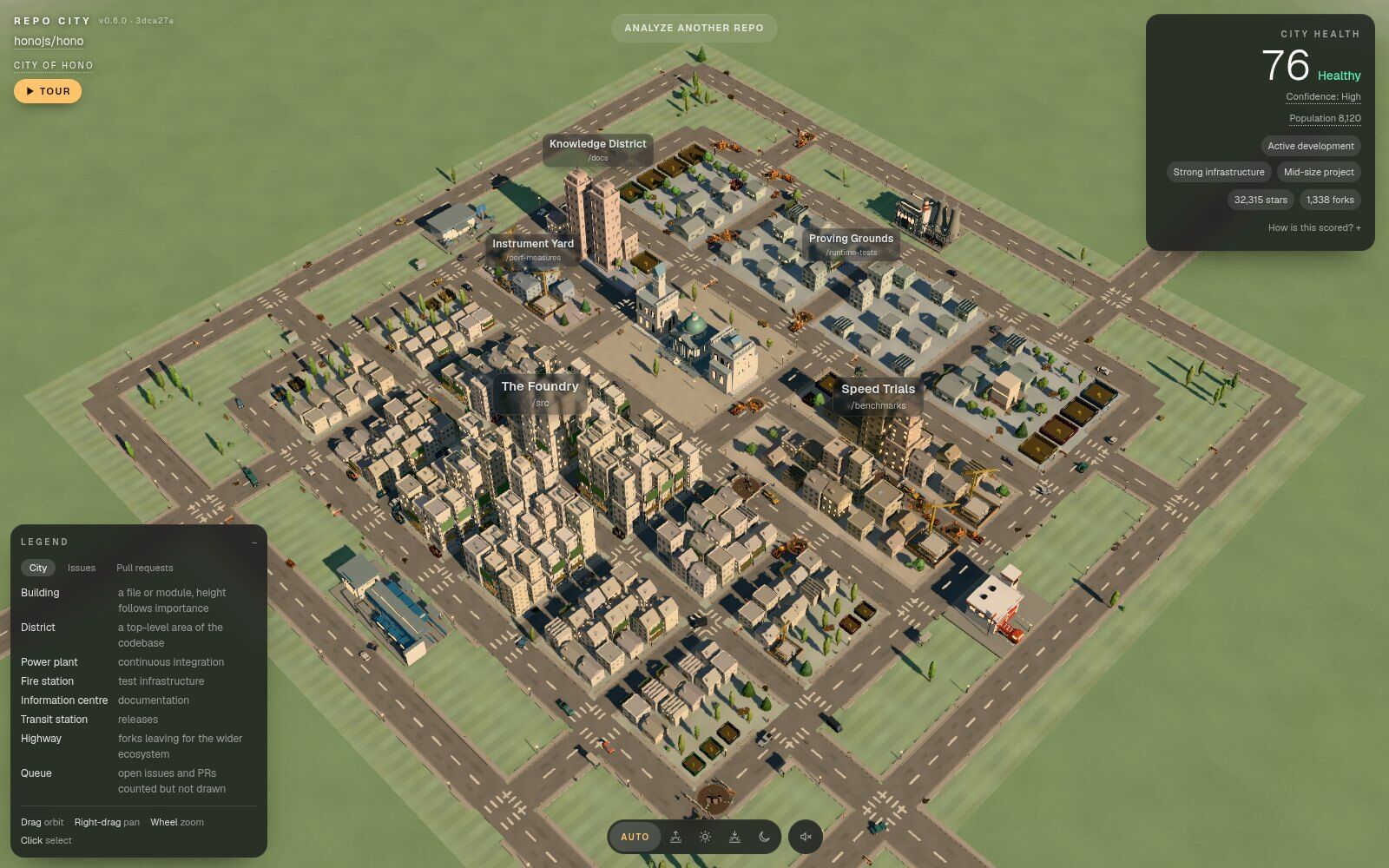

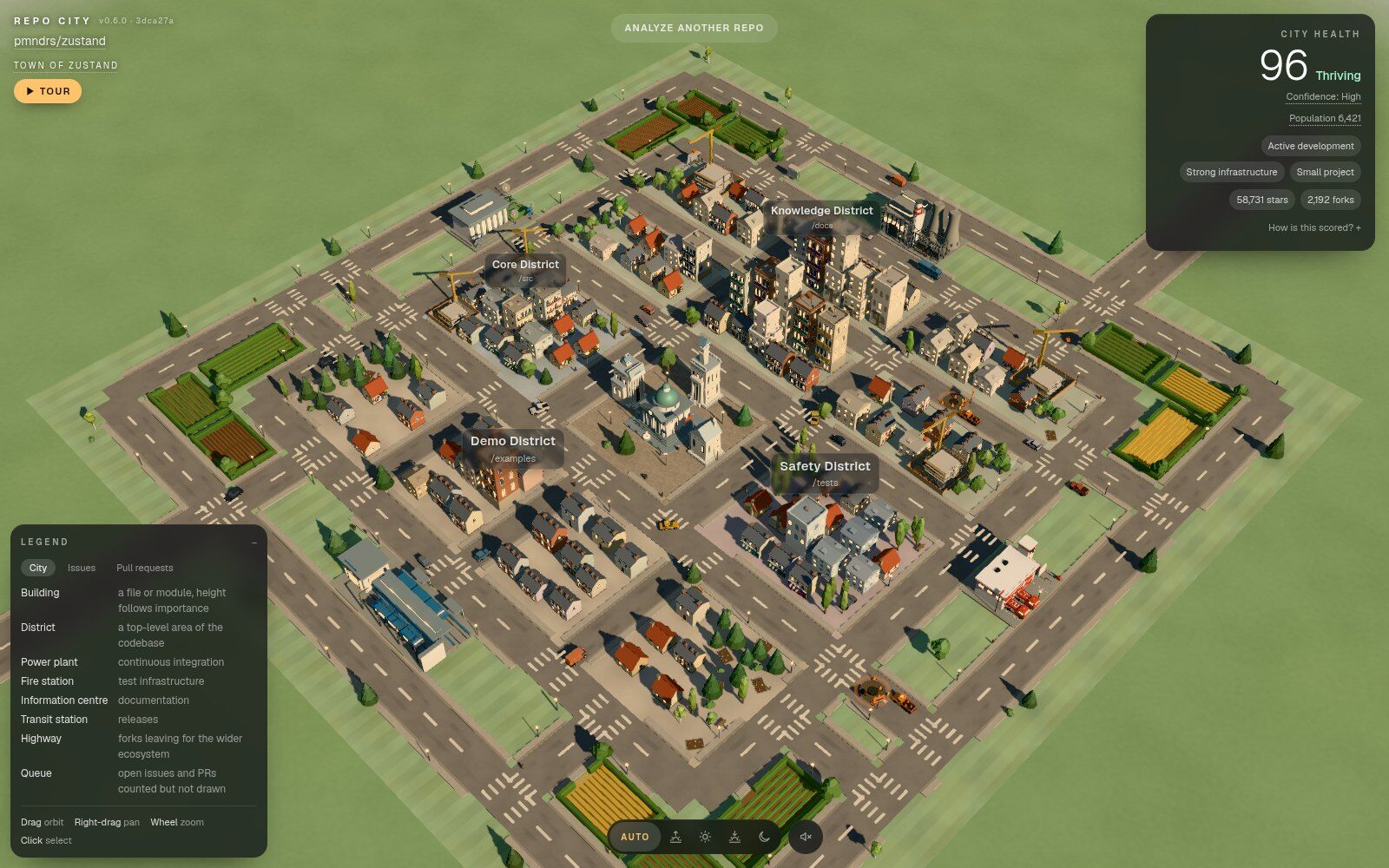

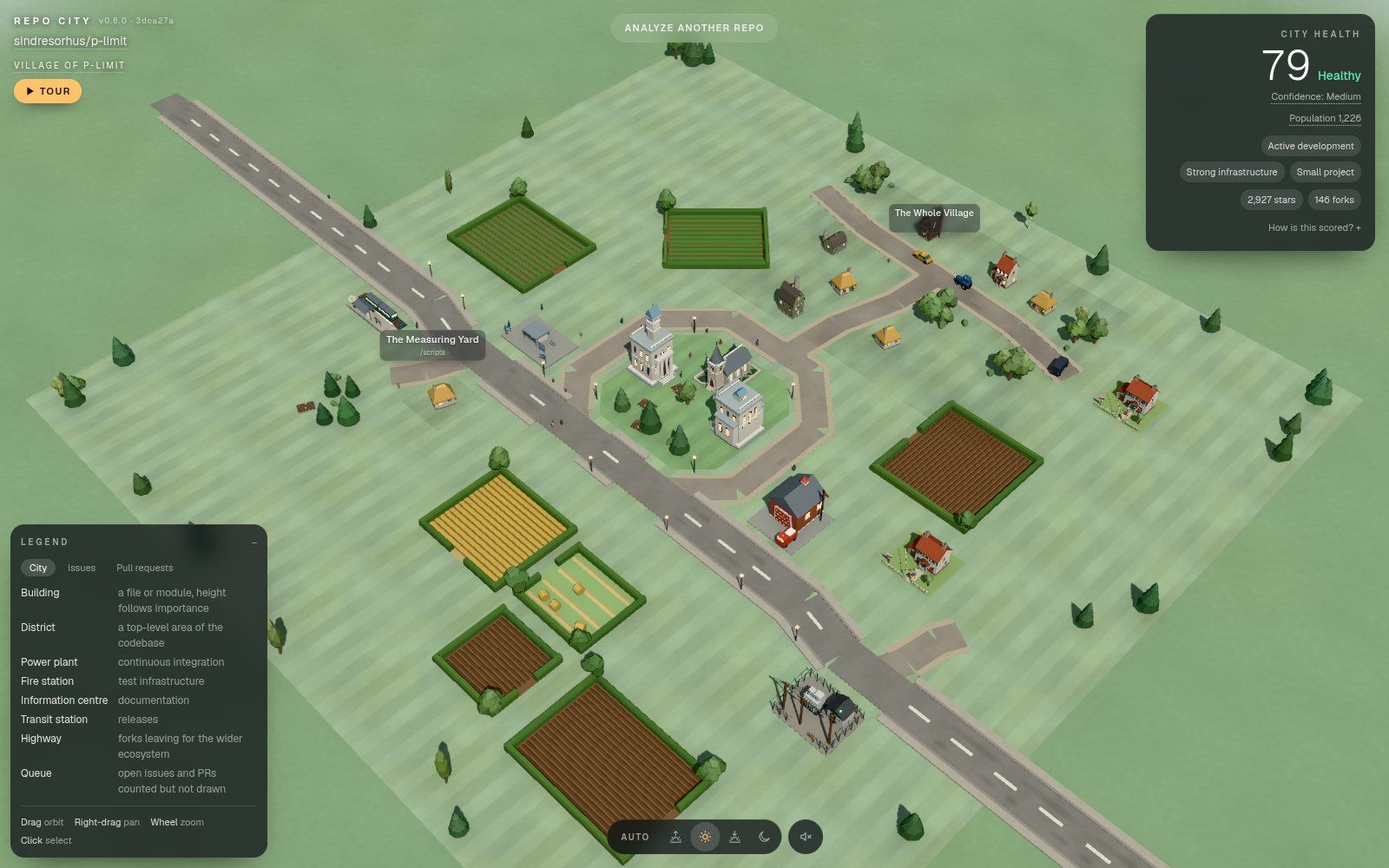

The HUD names it: "Village of p-limit", "Town of zustand", "City of hono", "Greater react". Hovering the name gives the reason.

The city

Every open issue

Up to 1,000 open issues are drawn, one object each, most recently active first. The most pressing dozen or so are full incident scenes with crews and emergency vehicles. The rest take one of seven forms, chosen from the issue's labels, title and state:

More discussion makes an object bigger and brighter. Age shows as rust.

Every open pull request

Up to 500 open PRs are drawn. The leading ones are full construction sites with cranes. The rest:

Signals on top: a red beacon when checks fail, a stop board when a reviewer asked for changes, a green flag when approved. Rust means nobody is working on it; grey means the work is slow.

When a repository has more open issues or PRs than the ceilings, or than the streets have room for, the rest wait in a queue at the city limits: gridlocked cars on the roads in and a signboard with the real count. A chip in the HUD says "500 of 514 pull requests on the streets".

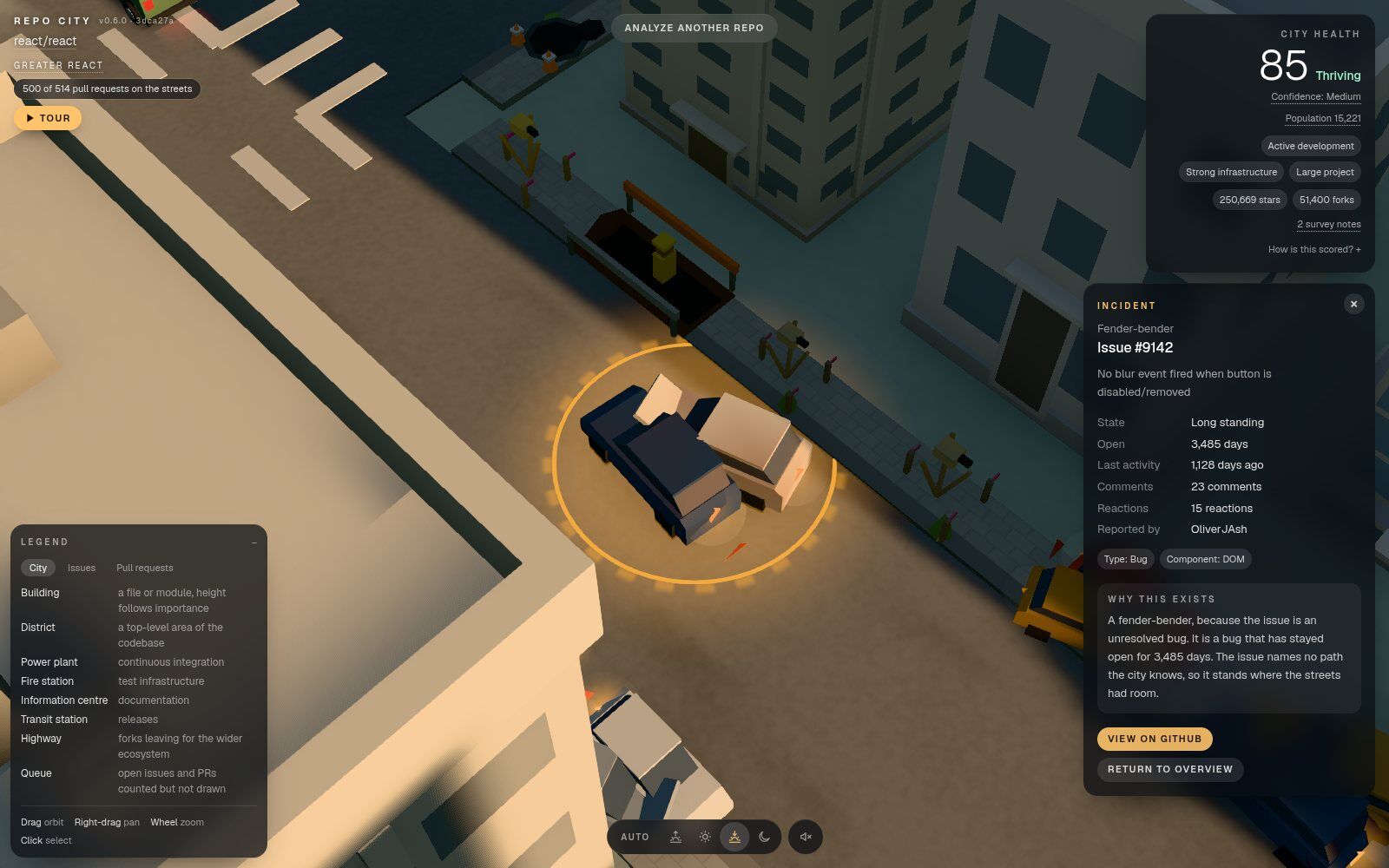

Every object can be hovered and clicked. The inspector shows the real GitHub record, a link to it, and a "Why this exists" line that states the rule that put it there.

Controls

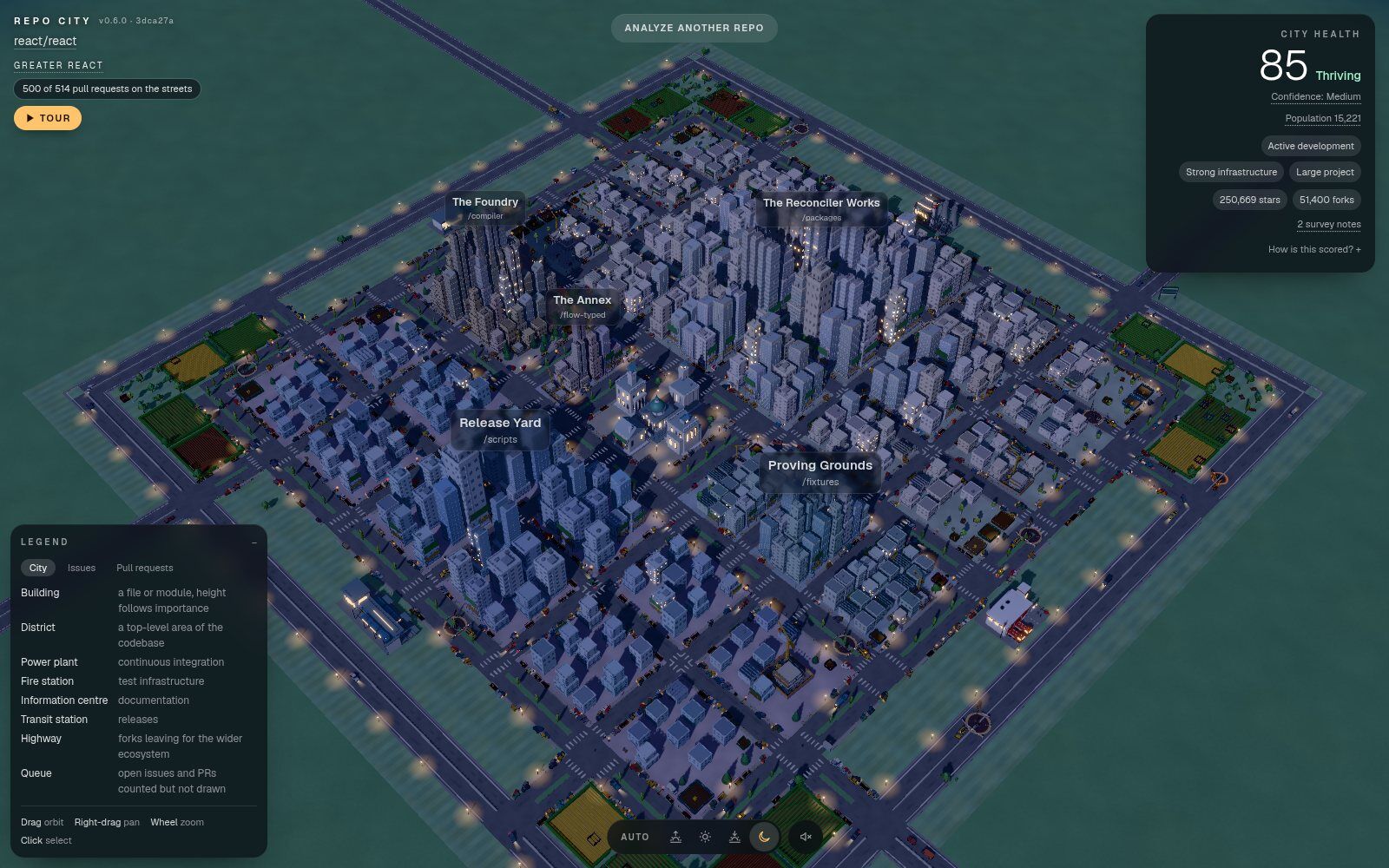

• Time of day: the pill at the bottom. Auto picks the hour from the repository (busier means later in the afternoon; archived stays at a cool midday), or choose morning, afternoon, evening or night. Night brings stars, a moon, lit windows and lamp pools.
• Sound: the speaker beside it. Off by default. Wind, birds and crickets, traffic, trains, sirens and building sites, all synthesized in the browser from the city on screen; nothing is downloaded.
• Tour: Space pauses, the right arrow skips to the next stop, Escape ends it. Dragging the city also ends it.
• Analyze another repo at the top opens the box again over the same city.

How it works

GitHub -> Repository snapshot -> Deterministic metrics -> Architecture interpretation
       -> City model -> 3D renderer

Three layers, kept apart:

DATA            GitHub facts          lib/github/*        types/repository.ts   server only
INTERPRETATION  metrics + AI          lib/analysis/*      types/analysis.ts     crosses the wire
                                      lib/ai/*
WORLD           the 3D city           lib/city/*          types/city.ts         browser only
                                      components/city/*

The survey. app/api/analyze/route.ts fetches the repository over REST and GraphQL in parallel: metadata, the file tree, open issues and PRs page by page, CI runs, commits, contributors and releases. It streams newline-delimited JSON back, one stage line per real step, then one result or error line. The progress panel shows only the events it receives. The HTTP status is always 200, because a streamed body cannot change its status after the first byte; failures travel in-band.

Health is deterministic. Maintenance 30%, reliability infrastructure 25%, documentation 20%, organization 15% and responsiveness 10%, computed from GitHub data with no model involved. It reads a fixed sample (the 100 most-discussed open issues and the 50 most recently updated PRs), so drawing every issue did not move anyone's score. It reports its own confidence and says plainly that it is a visualization, not an audit.

The city is deterministic. The seed is owner/name@headSha. Every random choice comes from a seeded generator with its own salt per subsystem; nothing calls Math.random() or Date.now(). The same revision always builds the same city.

The AI is optional. An architecture interpretation can name districts and describe what modules do. The adapter supports Anthropic, OpenAI, Google and any OpenAI-compatible endpoint, and it is off on the hosted demo (AI_PROVIDER=none). Twelve reference repositories have curated interpretations committed under fixtures/interpretations/, and every path in them is checked against the live tree on each request, so a stale file degrades instead of lying. Any other repository gets its district names from its folder names.

Caching and limits. A completed survey is cached in process for 15 minutes under the canonical name, and GitHub responses are revalidated every 10 minutes. Each visitor gets 10 surveys per 10 minutes, checked after the cache, so opening a repository someone already surveyed is free. When GitHub rate-limits a repository that has a snapshot in fixtures/, the route serves the snapshot and the HUD says so.

Performance and quality

The renderer measures itself and never guesses from the GPU name.

It probes once on the empty stage and once after the first city is built, and keeps a frame guard running: if frames stay slow for eight seconds, it steps down once more. It only steps down, so it cannot flap. No tier ever hides a building, an issue or a pull request.

Instancing keeps the crowd cheap: about 22 draw calls cover every crowd object, whether there are 50 or 1,500, and picking uses a custom per-instance raycast. A new city is built in the background (useDeferredValue inside the canvas) while the old one keeps drawing, so arrival does not freeze the page. If WebGL is missing or the context is lost, the page says so in plain words.

?quality=low|medium|high pins a tier for testing.

Local development

pnpm install
cp .env.example .env.local   # add your own GITHUB_TOKEN; never commit this file
pnpm dev

Then open http://localhost:3000.

In development only, typing fixture, backlog or stress into the box loads a committed analysis without calling GitHub, and ?tier=village|town|city|metropolis forces a tier. scripts/perf-baseline.ts runs the headless performance checks.

Every credential stays on the server. Nothing uses NEXT_PUBLIC_.

Limitations

• Public repositories only. GitHub returns the same 404 for a missing repository and a private one, so both get the same message.
• Large trees are surveyed partially. The file tree is capped at 5,000 entries and six levels deep, and a metropolis draws at most 450 buildings. The settlement tier still uses the uncapped counts, and the HUD says when a survey was partial.
• Issue and PR ceilings. 1,000 open issues and 500 open PRs are drawn at most; the rest are counted in the queue at the city limits.
• Tests and documentation are detected from paths and config, so a project that tests or documents itself in an unusual way will be under-read.
• CI means GitHub Actions. Another CI provider reads as no CI.
• The cache and the rate limiter are per instance and best effort.

AI usage

Yard #3 is open-model. Repo City was built by Claude agents working in parallel git worktrees against a written specification (PLAN.md), with Robert directing and reviewing. Every commit names the model that wrote it in a Co-Authored-By trailer. The full declaration is in AI_MODELS.md. No model runs at request time on the hosted demo.

Hackyard Yard #3

Theme: One Screen. Solo build by Robert. Build window: 21 September 2026 18:00 UTC to 25 September 2026 18:00 UTC, and all project code was written inside it. The project's own rule, from PLAN.md section 0.2: you can go anywhere, but you never leave the city screen. Submission material and the demo script are in docs/.

License

MIT
