HA-Desktop-Widget

A semi-transparent desktop widget for Home Assistant that provides quick access to your smart home devices from your desktop.

• Download: https://github.com/Robertg761/HA-Desktop-Widget/releases

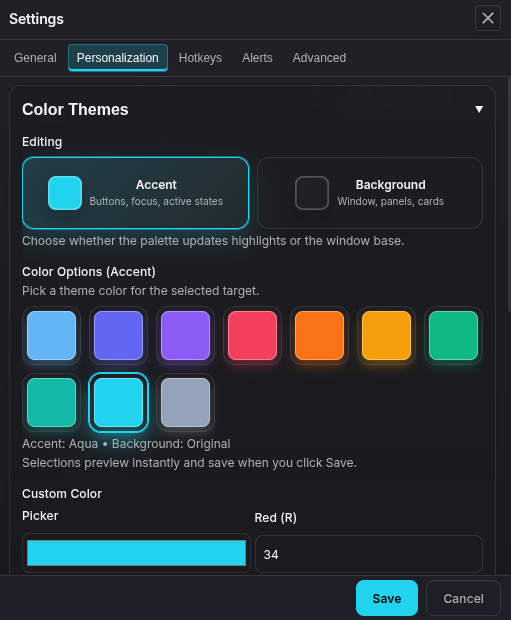

Settings: Personalization

The Personalization tab covers themes, window effects, primary cards, and media tile selection. Other Settings tabs include hotkeys, alerts, updates, and log access.

Features

Smart Home Control

• Real-time Updates: WebSocket connection for instant entity state changes

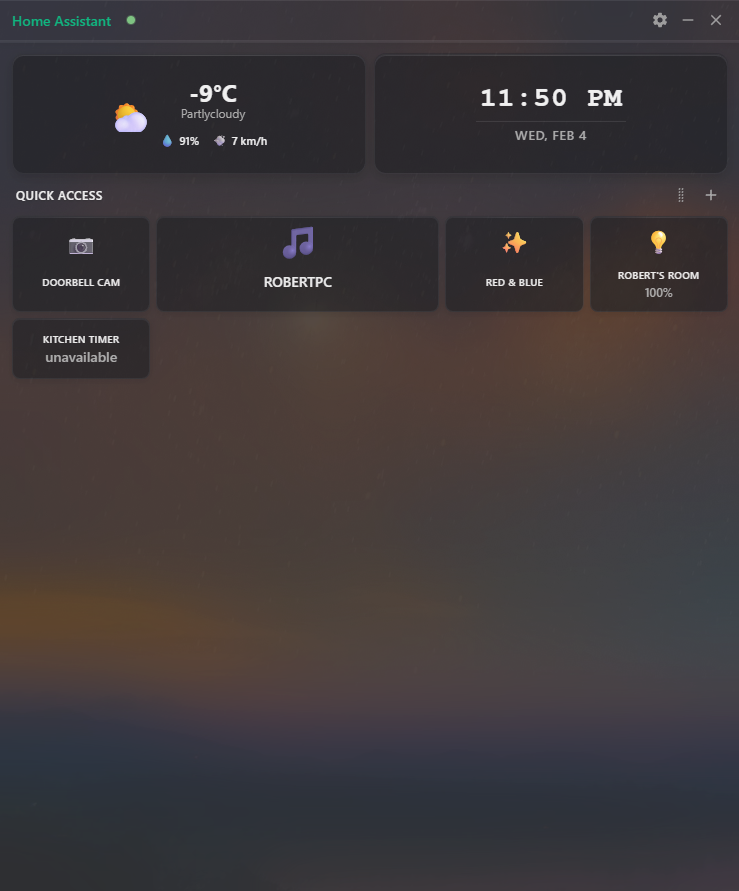

• Quick Access Dashboard: Customizable grid of your most-used entities
• Entity Management: Add, remove, and reorder entities with drag-and-drop
• Custom Names: Rename entities with custom display names that persist
• Interactive Controls: Toggle lights, switches, scenes, and more with a single click

Modern Interface

• Rainmeter-style Design: Clean, transparent desktop widget aesthetic
• Responsive Layout: Auto-sizing tiles that adapt to content
• Dark/Light Themes: Automatic theme switching based on system preferences
• Smooth Animations: Fluid drag-and-drop and hover effects
• Toast Notifications: Real-time feedback for all actions

Entity Support

• Lights: Toggle on/off, brightness control with vertical slider
• Switches & Fans: Simple on/off controls
• Sensors: Real-time value display with units
• Timers: Live countdown displays for active timers
• Cameras: Live feed viewing with snapshot fallback
• Climate: Temperature display and control
• Media Players: Play/pause, previous/next, artwork, and seek bar
• Scenes: One-click scene activation

Advanced Features

• Auto-Updates: Seamless background updates from GitHub
• System Tray: Minimize to tray with quick access menu
• Configuration: Easy setup with Home Assistant URL and token
• Performance: Optimized rendering and memory management
• Cross-Platform: Windows and macOS support with transparency effects
• Personalization: Accent/background themes, window opacity, and frosted glass
• Hotkeys: Global entity hotkeys and popup hotkey to bring the window to front
• Alerts: Desktop notifications for entity state changes
• Primary Cards: Configure the top two cards (weather/time or any entity)
• Media Tile: Choose a primary media player or hide the tile

Quick Start

Download & Install

1. Go to the Releases page and download the latest available installer or portable build.
2. If using the Installer: run the .exe and follow the prompts. If using the Portable build: unzip and run the executable (no installation required).
3. Run the app and click the Settings button to configure your Home Assistant connection.

First-Time Setup

1. Get your Home Assistant URL: Usually http://your-ha-ip:8123 or https://your-ha-domain.com
2. Create a Long-Lived Access Token:
   • Go to your Home Assistant profile (click your avatar)
   • Scroll down to "Long-lived access tokens"
   • Click "Create token" and give it a name like "Desktop Widget"
   • Copy the generated token
3. Configure the widget:
   • Paste your HA URL and token in Settings
   • Click "Save" - the widget will connect automatically
4. Add entities: Click the "+" button to add your favorite entities to Quick Access

How to Use

Quick Access Management

• Add Entities: Click the "+" button to search and add entities to your dashboard

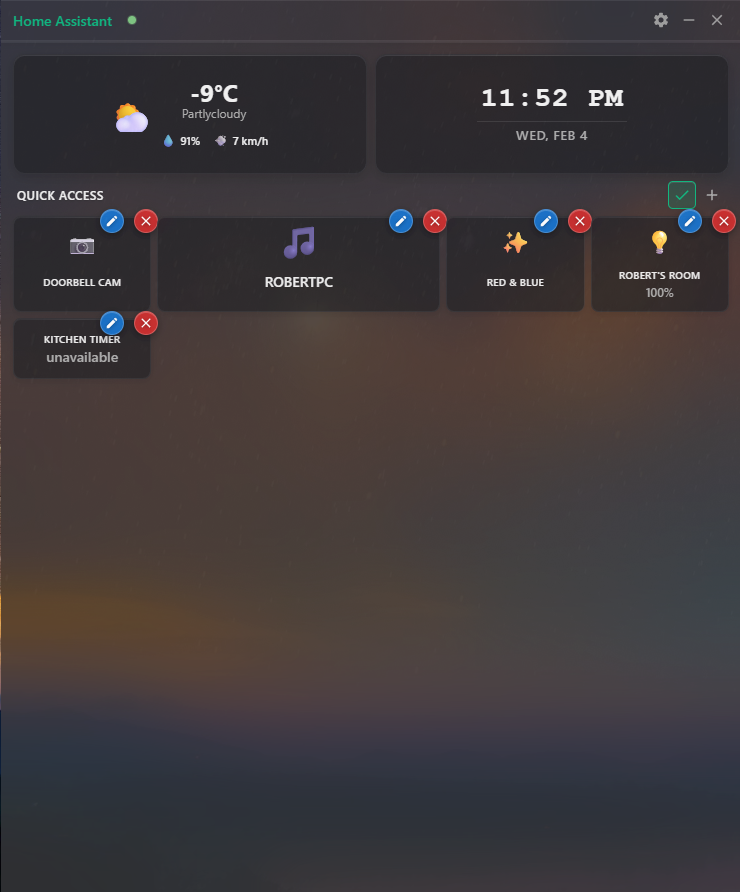

• Reorder: Click the Reorganize button to enter reorganize mode, then drag and drop to reorder
• Rename: In reorganize mode, click the edit icon to set custom display names
• Remove: In reorganize mode, click the remove button to remove entities

Entity Interactions

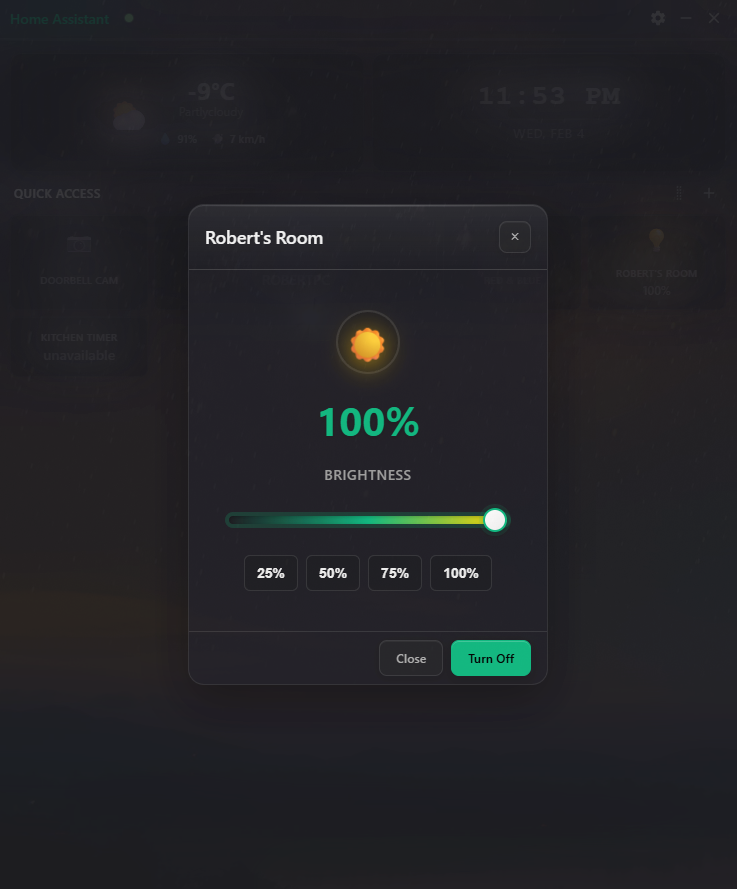

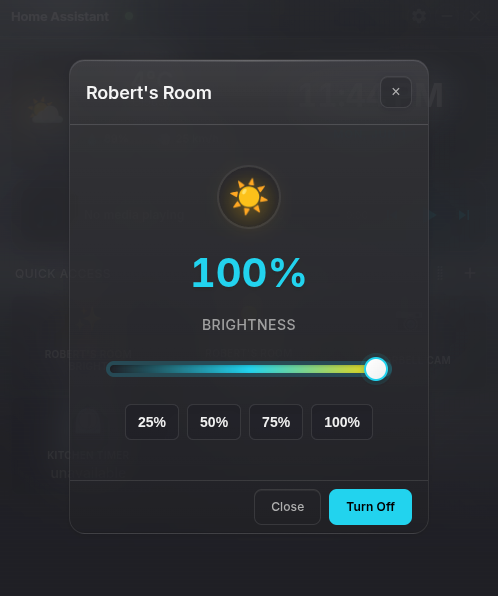

• Lights: Click to toggle, long-press for brightness slider
• Cameras: Click to view live feed in popup window
• Sensors: Display real-time values with automatic unit formatting
• Timers: Show live countdown when active
• Scenes: Click to activate instantly

System Integration

• Minimize to Tray: Click the minimize button to hide to system tray
• Auto-Updates: The app automatically checks for and installs updates
• Settings: Access via the Settings button or right-click the tray icon

Settings Highlights

• Themes: Choose accent and background color themes
• Window Effects: Adjust opacity and toggle frosted glass
• Primary Cards: Pin weather/time or any entity to the top two cards
• Media Tile: Select the primary media player or hide the tile
• Hotkeys: Configure global entity hotkeys and a popup hotkey (hold or toggle)
• Alerts: Enable desktop notifications for entity state changes

Advanced Usage

Build from Source

git clone https://github.com/Robertg761/HA-Desktop-Widget.git
cd HA-Desktop-Widget
npm install
npm run dev   # Development mode (opens DevTools)
npm start     # Regular run
npm run dist  # Build for distribution

Configuration

• Config Location: Stored as config.json in Electron's userData directory.
  • Windows (packaged): %AppData%/Home Assistant Widget/config.json
  • macOS (packaged): ~/Library/Application Support/HA Desktop Widget/config.json
  • Development builds: typically use home-assistant-widget as the folder name
• Config Contents: homeAssistant (url, token, tokenEncrypted), favoriteEntities, customEntityNames, selectedWeatherEntity, primaryMediaPlayer, globalHotkeys, entityAlerts, popupHotkey, windowPosition, windowSize, opacity, ui (theme, highContrast, opaquePanels, density, accent, background), and customTabs. Other stored values include primaryCards, alwaysOnTop, frostedGlass, popupHotkeyHideOnRelease, and popupHotkeyToggleMode.
• Security: Tokens are never committed to version control and are encrypted at rest when supported by the OS

Troubleshooting

Connection Issues

• Verify URL: Ensure your Home Assistant URL is accessible from your computer
• Check Token: Make sure your long-lived access token is valid and not expired
• Firewall: Ensure your OS firewall allows the app to connect to your network
• Network: Test connectivity by opening your HA URL in a web browser

Performance Issues

• Reduce Entities: Limit the number of entities in Quick Access
• Visual Effects: Disable transparency if experiencing performance issues

Common Solutions

• Restart: Close and reopen the app if entities aren't updating
• Reconnect: Go to Settings and click "Save" to reconnect to Home Assistant
• Check Logs: Use Settings > View Logs to open the log file location

Contributing

We welcome contributions! Here's how you can help:

Reporting Issues

• Bug Reports: Use the Issues page
• Feature Requests: Submit enhancement ideas with detailed descriptions
• Documentation: Help improve this README or add usage examples

Development

• Fork & Clone: Fork the repository and clone your fork
• Create Branch: Make changes in a feature branch
• Test: Ensure your changes work and don't break existing functionality
• Submit PR: Create a pull request with a clear description of your changes

Code Style

• ESLint: Follow the existing code style (run npm run lint)
• Comments: Add comments for complex logic
• Testing: Add tests for new features when possible

License

This project is licensed under the MIT License - see the LICENSE file for details.

Acknowledgments

• Built with Electron for cross-platform desktop apps
• Uses Home Assistant WebSocket API for real-time updates
• Inspired by the clean aesthetic of Rainmeter desktop widgets

If you find this project useful, please give it a star on GitHub!
